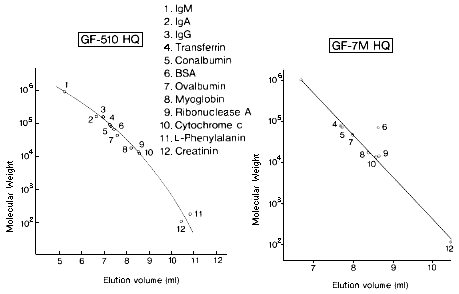

Calibration Curves for GF-HQ Series (Aqueous Eluent: Proteins)

Calibration curves for Asahipak GF-510 HQ and GF-7M HQ (columns for GFC separation) are shown.


Sample:
1. IgM
2. IgA
3. IgG
4. Transferrin
5. Conalbumin
6. BSA
7. Ovalbumin
8. Myoglobin
9. Ribonuclease A
10. Cytochrome c
11. L-Phenylalanin
12. Creatinine

Columns      : Shodex Asahipak GF-510 HQ (7.5mmID*300mm)       : GF-7M HQ (7.5mmID*300mm)
Eluent       : 0.1M Sodium phosphate buffer(pH7.0) + 0.1M NaCl : 0.2M Sodium phosphate buffer(pH7.0)
Flow rate    : 0.5mL/min                                       : 0.5mL/min
Detector     : UV(280nm)                                : UV(280nm)
Column temp. : 30deg-C                                         : 30deg-C
