Comparison of Chromatograms of Protein mixtures

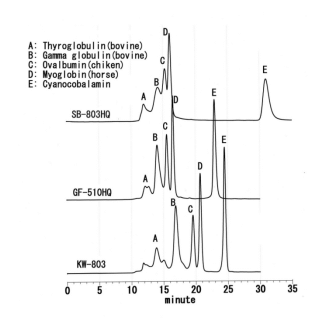

This figure shows the chromatogram of protein mixtures analyzed with OHpak SB-803 HQ, Asahipak GF-510 HQ or PROTEIN KW-803. KW-803 is the best column for the separetion of these proteins.



Sample :
A: Thyroglobulin (bovine)
B: gamma-Globulin (bovine)
C: Ovalbumin (chiken)
D: Myoglobin (horse)
E: Cyanocobalamin

Columns      : Shodex OHpak SB-803 HQ (8.0mmID*300mm)
               Shodex Asahipak GF-510 HQ (7.5mmID*300mm)
               Shodex PROTEIN KW-803 (8.0mmID*300mm)
Eluent       : 0.2M Phosphate buffer(pH6.9)
Flow rate    : 0.5mL/min
Detector     : UV(280nm)
Column temp. : 30deg-C
