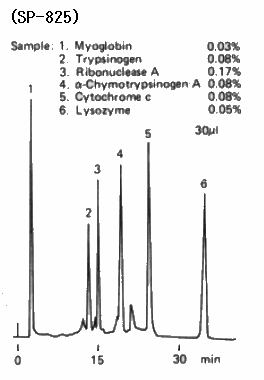

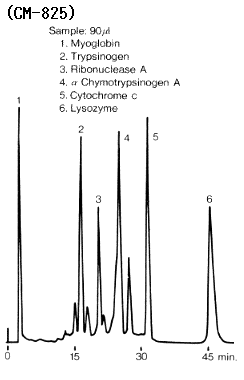

Standard Proteins (7) (CM-825, SP-825)

Six kinds of protien standard were analyzed using IEC CM-825 ( a column for weak cation exchange chromatography ) and IEC SP-825 ( a column for strong cation exchange chromatography ).



Sample :
1. Myoglobin, 2. Trypsinogen, 3. Ribonuclease A, 4. alpha Chymotrypsinogen A, 5. Cytochrome c, 6. Lysozyme
Columns      : (Left) Shodex IEC CM-825 (8.0mmID*75mm)
               (Right) Shodex IEC SP-825 (8.0mmID*75mm)
Eluent       : (A); 20mM Sodium phosphate buffer(pH7.0)
               (B); (A) + 0.5M NaCl
               Linear gradient: 0min to 60min, (A) to (B)
Flow rate    : 1.0mL/min
Detector     : UV(280nm)
Column temp. : Room temp.
