Calibration Curve for Saccharides and Organic Acids (SH1011)

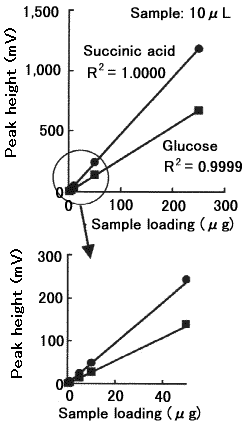

Quantitaive analysis of saccharides and organic acids was performed using SUGAR SH1011. The linearity of the calibration curves are fairly good.


Sample : 10micro-L
Correlation Coefficient
(0.2 to 250micro-g)
Glucose 0.9999
Succinic acid 1.0000
Isomaltotriose 0.9999
Xylitol 0.9999
Maltitol 1.0000
Acetic acid 1.0000
Propionic acid 1.0000
Adipic acid 0.9997


Column       : Shodex SUGAR SH1011 (8.0mmID*300mm)
Eluent       : 5mM H2SO4 aq.
Flow rate    : 0.6mL/min
Detector     : Shodex RI        for saccharides
               UV(210nm) for organic acids
Column temp. : 60deg-C
