Analysis of Organic Acids (Eluent Conteinig Cyclodextrin)

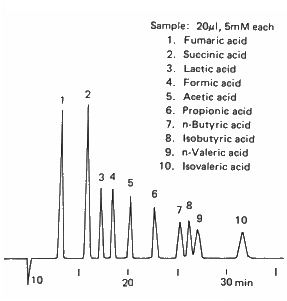

Organic acid standards were analyzed using RSpak KC-811. The elution time of organic acids which have long carbon chain such as butyric acid or valeric acid can be shortened adding cyclodextrin in the eluent.

Sample : 5mM each , 20micro-L
1. Fumaric acid
2. Succinic acid
3. Lactic acid
4. Formic acid
5. Acetic acid
6. Propionic acid
7. n-Butyric acid
8. Isobutyric acid
9. n-Valeric acid
10. Isovaleric acid

Columns      : Shodex RSpak KC-LG (8.0mmID*50mm) + KC-811 (8.0mmID*300mm) x 2
Eluent       : 2mM HClO4 + 4mM alph-cyclodextrin(pH3.0)
Reagent      : 10-fold diluted ST3-R (for post column method)
Flow rate    : (Eluent); 1.0mL/min, (Reagent); 0.5mL/min
Detector     : VIS(430nm)
Column temp. : 47deg-C
