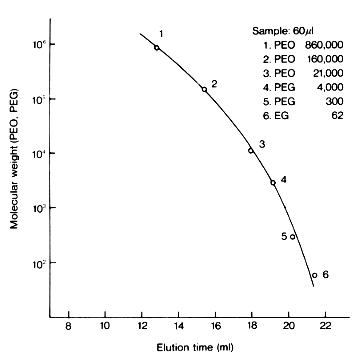

Calibration Curve for GF-710 HQ (Methanol Eluent: PEG and PEO)

A calibration curve for Asahipak GF-710 HQ is shown.


Sample :
1. PEO, Poly(ethylene oxide) (MW: 860,000)
2. PEO, Poly(ethylene oxide) (MW: 160,000)
3. PEO, Poly(ethylene oxide) (MW: 21,000)
4. PEG, Poly(ethylene glycol) (MW: 4,000)
5. PEG, Poly(ethylene glycol) (MW: 300)
6. EG, Ethylene glycol (MW: 62)

Column       : Shodex Asahipak GF-710 HQ (7.5mmID*300mm)
Eluent       : 50mM LiCl in CH3OH
Column temp. : 30deg-C
