Poly(Butylene Terephthalate) (1) (Eluent: HFIP)

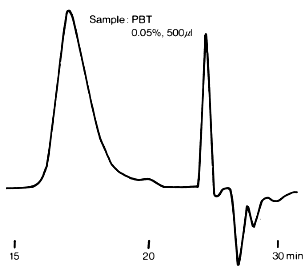

Poly(butylene terephthalate) was analyzed using GPC HFIP-805 + HFIP-803 (columns for organic SEC (GPC)). PBT is a polyester resin used in a wide variety of fields. This chromatogram shows that small amounts of oligomers may affect the characteristics of PBT resin.


Sample : PBT, Poly(butylene terephthalate)

Columns      : Shodex GPC HFIP-805 + HFIP-803 (8.0mmID*300mm each)
Eluent       : 5mM CF3COONa in HFIP
Flow rate    : 1.0mL/min
Detector     : Shodex RI
Column temp. : 40deg-C
