HDPE Sample-B (1)

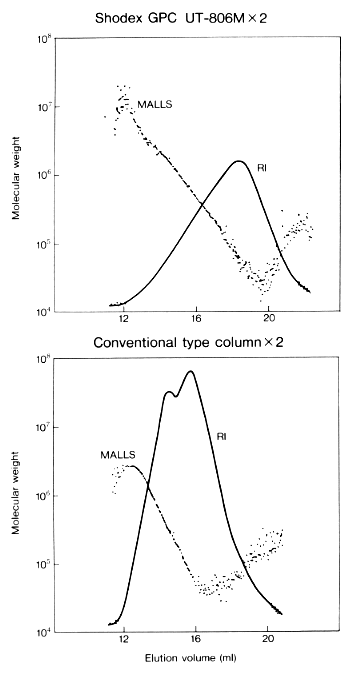

This shows a comparison of results for the analysis of high density polyethylene (HDPE) using conventional columns and GPC UT-806M. A high molecular weight portion of around 2x10⁷ was detected with UT-806M.


Sample : HDPE, High density polyethylene

Columns      : Shodex GPC UT-806M (8.0mmID*300mm) x 2, Conventional type column x 2
Eluent       : 0.1% BHT* in ODCB
Flow rate    : 1.0mL/min
Detector     : RI, MALS(Multi angle laser light scattering)
Column temp. : 145deg-C

*BHT: Butylhydroxytoluene
