Phthalates

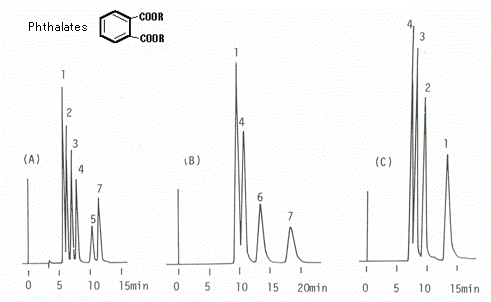

Phthalates were analyzed using RSpak DS-613 with different eluents. With THF/H₂O eluent, the elution pattern is that of typical reversed phase. With C₂H₅OH eluent, the pattern is also that of reversed phase but the peak shape is rather broad and the separation is not so good except the separation between DEHP and DBP. With n-hexane/C₂H₅OH eluent, the elution pattern is that of normal phase.


Sample : 2.5micro-L
(A)0.2% each, 0.4%(DOP)
(B)(C)0.4% each
1. DMP, Dimethyl phthalate
2. DEP, Diethyl phthalate
3. DPP, Dipropyl phthalate
4. DBP, Dibutyl phthalate
5. DHP, Dihexyl phthalate
6. DEHP, Diethylhexyl phthalate
7. DOP, Dioctyl phthalate

Column       : Shodex RSpak DS-613 (6.0mmID*150mm)
Eluent       : (A) THF/H2O=70/30 (Reversed phase)
               (B) C2H5OH (Reversed phase)
               (C) n-Hexane/C2H5OH=95/5 (Normal phase)
Flow rate    : (A)0.5mL/min, (B)(C)0.6mL/min
Detector     : UV(254nm)
Column temp. : (A)(B) 50deg-C, (C)25deg-C
