Epoxy Resin Oligomer

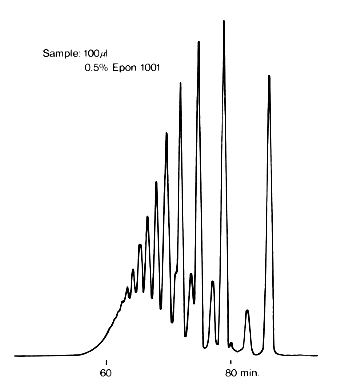

This figure shows the analysis results for epoxy resin oligomer with THF eluent using GPC KF-802.5 and KF-803 (columns for organic SEC (GPC)). Usually, two to four columns connected in series are used for GPC analysis. In this case eight columns were used to obtain high resolution.


Sample : Epon 1001

Columns      : Shodex GPC KF-803 x 4 + KF-802.5 x 4 (8.0mmID*300mm each)
Eluent       : THF
Flow rate    : 1mL/min
Detector     : UV(254nm)
Column temp. : Room temp.
