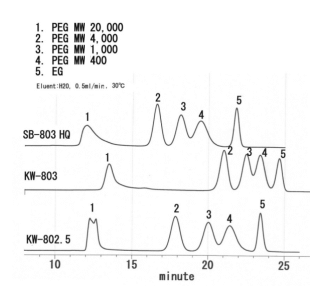

Comparison of Chromatogram of PEG Mixtures

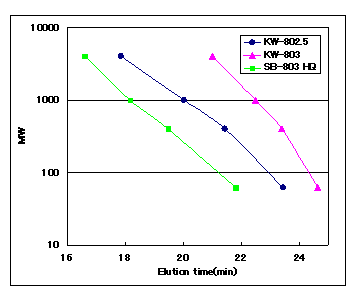

The polymer-based OHpak SB-803 HQ column has a large distribution of pore size. So, SB-803 HQ is suitable for the measurement of the synthetic polymer with large molecular weight distribution. The silica-based PROTEIN KW-803 and KW-802.5 columns are suitable for the analysis of protein, because a distribution of pore size of them is comparatively narrow.


Sample :
1. Poly(ethylene glycol) (MW: 20,000)
2. Poly(ethylene glycol) (MW: 4,000)
3. Poly(ethylene glycol) (MW: 1,000)
4. Poly(ethylene glycol) (MW: 400)
5. EG, Ethylene glycol (MW: 62)

Columns      : Shodex OHpak SB-803 HQ or PROTEIN KW-802.5 or KW-803 (8.0mmID*300mm each)
Eluent       : H2O
Flow rate    : 0.5mL/min
Detector     : Shodex RI
Column temp. : 30deg-C
