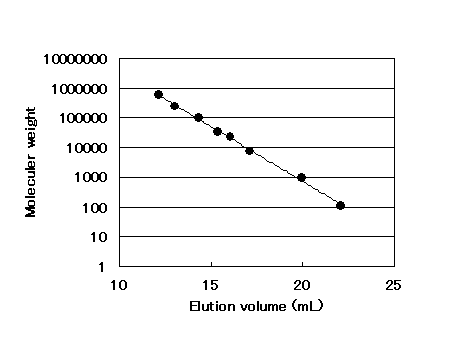

Calibration Curve for LF-804 (DMAc Eluent: PEG, PEO)

The calibration curve of PEG/PEO standards using organic SEC (GPC) column LF-804 with DMAc as an eluent is shown.


Sample : 200micro-L
PEO, Poly(ethylene oxide)
PEG, Poly(ethylene glycol)

Columns      : Shodex GPC LF-804 (8.0mmID*300mm) x 2
Eluent       : 30mM LiBr in DMAc
Flow rate    : 0.7mL/min
Detector     : Shodex RI
Column temp. : 40deg-C
