Calibration Curves for Oxyhalides (SI-52 4E)

Please use this column with suppressor type ion chromatography system.

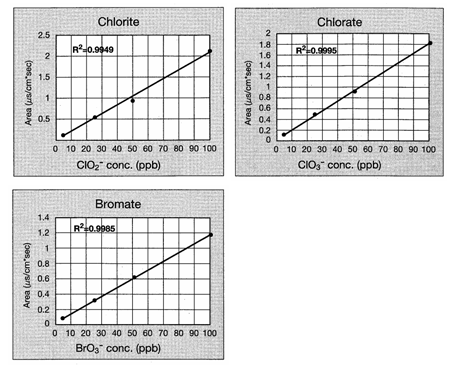

By use of IC SI-52 4E, even trace level (5ppb) of oxyhalides, such as chlorite (ClO₂^-), bromate (BrO₃^-) and chlorate (ClO₃^-), can be determined simultaneously with seven common inorganic anions. Each calibration curve shows very good linearity over the wide range of concentration.


Sample : 100micro-L
ClO₂^-
BrO₃^-
ClO₃^-

Column       : Shodex IC SI-52 4E (4.0mmID*250mm)
Eluent       : 3.6mM Na2CO3 aq.
Flow rate    : 0.8mL/min
Detector     : Suppressed conductivity
Column temp. : 45deg-C
